Adapters
Adapters are used to increase the diameter of your printing cylinder / mandrel in order to use thin sleeve technology or just to increase your repeat range ability with the use of VRS sleeves. Adapters come in two variants, the independent air source adapter and the bleed through adapter.

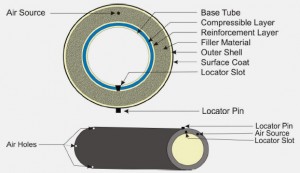

The independent air source has internal air fittings and piping, allowing you to connect the air directly to the adapter. These adapters must have a minimum wall thickness of approximately 10mm. The Bleed adapter will allow the air pressure to bleed directly through it from the mandrel. These adapters will be between 5mm and 10mm in wall thickness.
Product advantages
- Low weight, high strength
- Anti-static surface
- Easy to handle
- Encapsulated inner core no de-laminating of layers
- Can be used on an adapter.
Product features
- Robust adapter design made of glass composites.
- Easily cleaned and solvent resistant surface.
- Stainless steel locating slot for improved locating.
- Adapter is not prone to indents caused by accidental damage.
- Adapters with a wall thickness above 10mm have an independent air source.
- Adapters with a wall thickness of 10mm will be bleed types.
Typical Adapter Data:
- Max T.I.R 0.04mm
- Max Taper 0.04mm
- Max Length deviation 2mm
- Static Dispersion <1 Mega Ohm
- Min Wall 5mm
- Max Wall 75mm
- Not affected by humidity
- Cleaning with non aggressive solvents
